Supermiceo Motherboard MBD-X11SRA-F-B Xeon Skylake-W C422 Max.256GB DDR4 PCIE SATA ATX Brown Box ^Sale

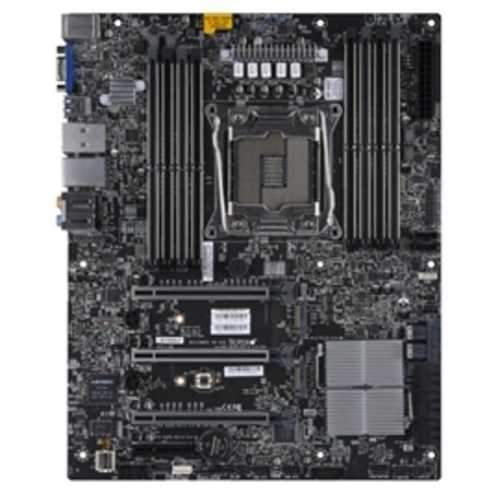

Supermiceo Motherboard MBD-X11SRA-F-B Xeon Skylake-W C422 Max.256GB DDR4 PCIE SATA ATX Brown Box

1. Intel Xeon Processor Skylake-W , Intel Xeon Processor W Family., Single Socket R4 (LGA 2066) supported, CPU TDP support Up to 140W
2. Intel C422
3. Up to 256GB Registered ECC RDIMM, DDR4-2666MHz; Up to 512GB Registered ECC LRDIMM, in 8 DIMM slots
4. 3 PCI-E 3.0 x16,
1 PCI-E 3.0 x4***3xPCI-E3.0 x16 Slots(8/16/16 (Skylake-W 48 lanes), 1xPCI-E3.0x4 slots***
M.2 Interface: 2 PCI-E 3.0 x4
M.2 Form Factor: 22110
M.2 Key: M-Key (RAID 0,1 support)
U.2 Interface: 2 PCI-E 3.0 x4
5. Intel C422 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
*iRST enabled, only SATA2 to SATA5 support RAID.
6. Single LAN with Intel Ethernet Controller I210-AT
Single LAN with Aquantia 5G LAN chip AQC108


Physical Stats
Form Factor:ATX
Dimensions:12 x 9.6 (30.48cm x 24.38cm)

Processor/Cache
CPU:Intel Xeon Processor Skylake-W , Intel Xeon Processor W Family.
Single Socket R4 (LGA 2066) supported, CPU TDP support Up to 140W

System Memory
Memory Capacity:Up to 256GB Registered ECC RDIMM, DDR4-2666MHz Up to 512GB Registered ECC LRDIMM, in 8 DIMM slots
Memory Type:2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMM
DIMM Sizes:4GB, 8GB, 16GB,
On-Board Devices
Chipset:Intel C422
SATA:Intel C422 controller for 6 SATA3 (6 Gbps) ports RAID 0,1,5,10
iRST enabled, only SATA2 to SATA5 support RAID.
IPMI:ASPEED AST2500
Network Controllers:Single LAN with Intel Ethernet Controll
Input / Output
LAN:RJ45 Shared IPMI LAN port
USB:6 USB 2.0 ports (2 rear + 4 headers),
6 USB 3.0 ports (4 rear + 2 headers),
2 USB 3.1 ports ( + 2 Type A)
Serial Port / Header:1 COM Port (1 header)
TPM:1 TPM Header

Expansion Slots
PCI-E:3 PCI-E 3.0 x16,
1 PCI-E 3.0 x4
3xPCI-E3.0 x16 Slots(8/16/16 (Skylake-W 48 lanes), 1xPCI-E3.0x4 slots
M.2:M.2 Interface: 2 PCI-E 3.0 x4
Form Factor: M-Key 22110 (RAID 0,1 support)
M-Key for SSD and Optane(u
System BIOS
BIOS Type:UEFI 128Mb

Management
Software:AMT, IPMI2.0, SuperDoctor 5, Watchdog

PC Health Monitoring
Voltage:+1.8V, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, 5 (4-pin), Chassis intrusion header, Monitors CPU voltages, Monitors for CPU Cores, System temperature, VBAT
FAN:5x 4-pin fan headers (
Operating Environment
Operating Temperature Range:0^oC - 50^oC (32^oF - 122^oF)
Non-Operating Temperature Range:-20^oC - 60^oC (-4^oF - 140^oF)
Operating Rel
Item Dimension (L inchxW inchxH inch)
12 x 10 x 1
Weight
3.00lb
Warranty Information
1 Year







Package includes: Supermiceo Motherboard MBD-X11SRA-F-B Xeon Skylake-W C422 Max.256GB DDR4 PCIE SATA ATX Brown Box
WARRANTY: 1 Year Direct Manufacturer Warranty
